Sports Stadium LED Display — P5 / P8 / P10

Name: Sports Stadium LED Display — P5 / P8 / P10
Brand: Green Harvest Optoelectronics Co., Ltd.

Category: Outdoor Advertising LED Displays

Sports Stadium LED Display — P5 / P8 / P10 — image 1

Sports Stadium LED Display — P5 / P8 / P10 — image 2

Sports Stadium LED Display — P5 / P8 / P10 — image 3

Sports Stadium LED Display — P5 / P8 / P10 — image 4

Sports Stadium LED Display — P5 / P8 / P10 — image 5

Sports Stadium LED Display — P5 / P8 / P10 — image 6

Outdoor Fixed

Sports Stadium LED Display — P5 / P8 / P10

Application: Sports stadium. Ground Type Name: Sports series Pixel pitch: 5mm 8mm 10mm Brightness: 6000 nits Cabinet Size: 960×960×90 mm Feature: Big size Die-casting Aluminium cabinet, can be stacking hanging installation,

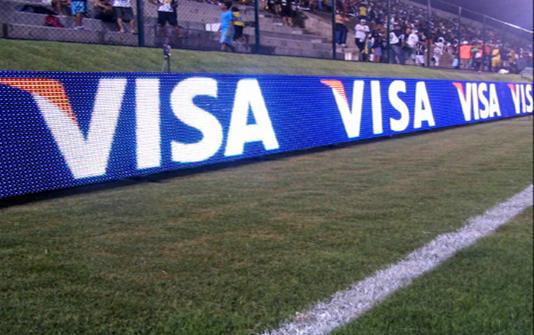

Application: Sports stadium. Ground
Type Name: Sports series
Pixel pitch: 5mm 8mm 10mm
Brightness: 6000 nits
Cabinet Size: 960×960×90 mm
Feature: Big size Die-casting Aluminium cabinet, can be stacking hanging installation,

Request a quotation WhatsApp us

Key features

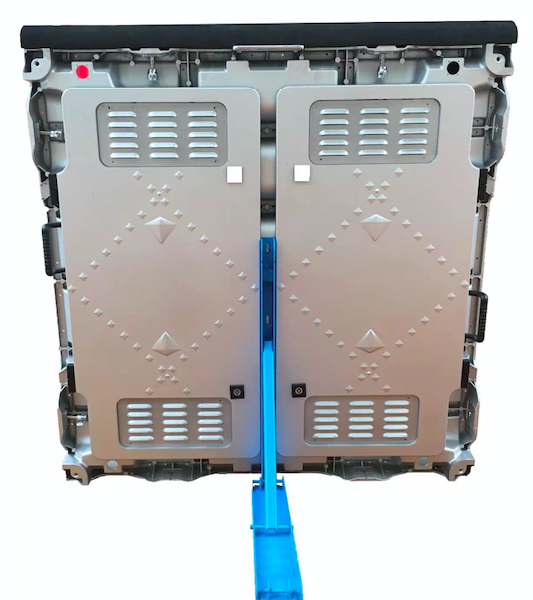

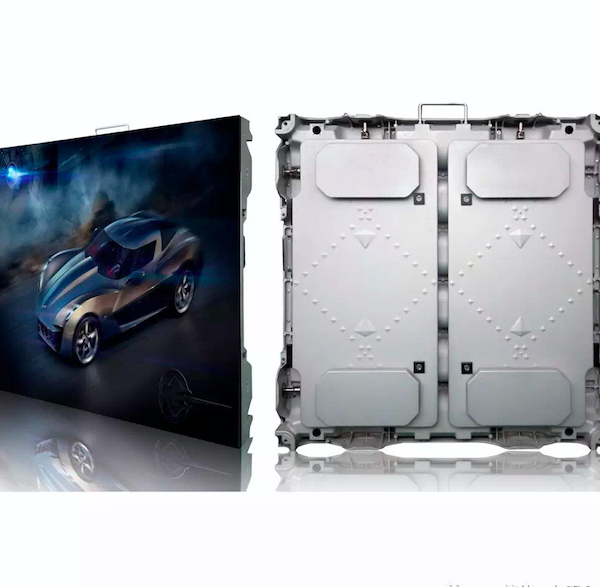

Big & Strong Die-casting cabinet design cabinet size, 960 x 960mm Thickness 90mm

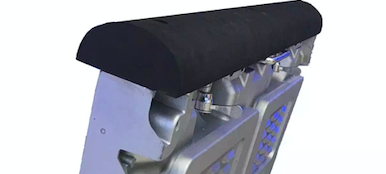

Soft Top cover The Top Soft cover to protect the people hurt.

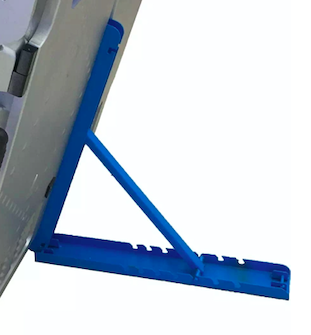

Folding Supporter The backside supporter can be folded, same as normal outdoor rental led display.

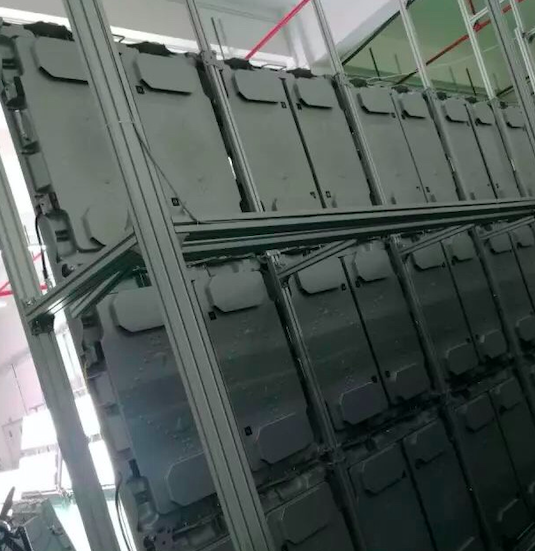

Stacking Assemble

Banner Assemble

Specifications

Type Name	Sports P10	Sports P8	Sports P5
Pixel Pitch	10mm	8mm	5mm
Pixel density（dot/m2）	10000	15625	40000
Brightness (nits)	≥6000	≥6000	≥6000
Drive Method	1/2	1/4	1/4
Refresh rate (HZ)	≥4800
Module pixel (mm)	320x160	320x160	320x160
Cabinet size (mm)	960x960x90mm
Cabinet material	Die-casting Aluminium
Cabinet weight	35kg/cabinet
Screen work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 650 / Average200	Max 650 / Average200	Max 650 / Average200
Screen View angle	160°/140°
IP Grade	IP65
Operationg Temperature/Humidity	-20~50℃ 10~90% RH
Storage Temperature/Humidity	-40~60℃ 10~90% RH
Life Time	＞50000H
Standard Certification	CE CCC	CE CCC	CE CCC
