RB2 Rental LED Display
Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm
Cabinet Size: 500×500mm or 500×1000mm
View detailsRB Rental LED Display
Rental (Value)
RB Rental LED Display
Application: Stage, show rooms, TV station, meeting room Type Name: RB series Pixel pitch: indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm Cabinet Size: 500×500mm or 500×1000mm Feature: easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.
- Application
- Stage, show rooms, TV station, meeting room
- Type Name
- RB series
- Pixel pitch
- indoor: 1.56mm (GOB), 1.953mm (GOB), 2.604mm 2.976mm 3.91mm 4.81mm, Outdoor:2.604mm 2.976mm 3.91mm 4.81mm
- Cabinet Size
- 500×500mm or 500×1000mm
- Feature
- easy to carry, easy to assemble, ultra slim & light cabinet design, high resolution, high refresh rate.
Key features

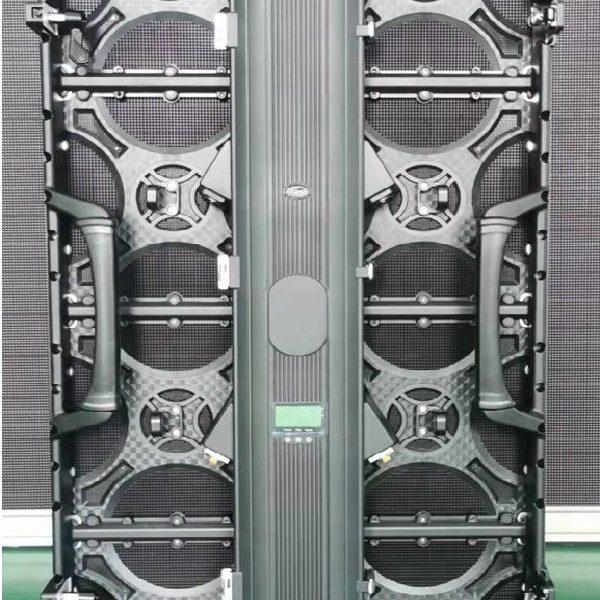

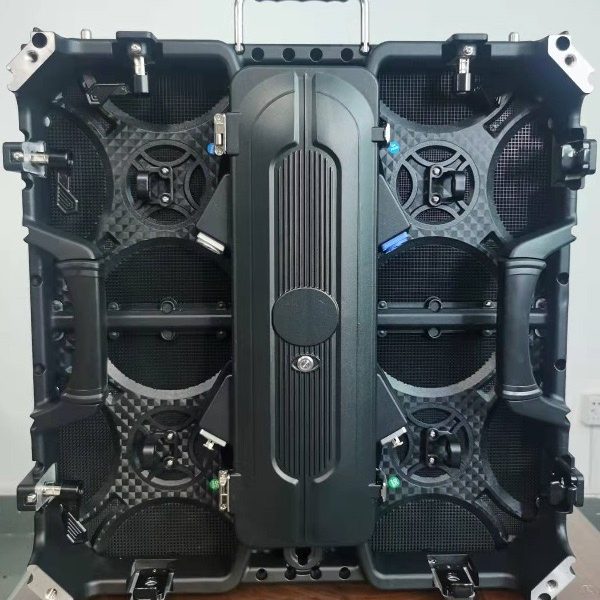

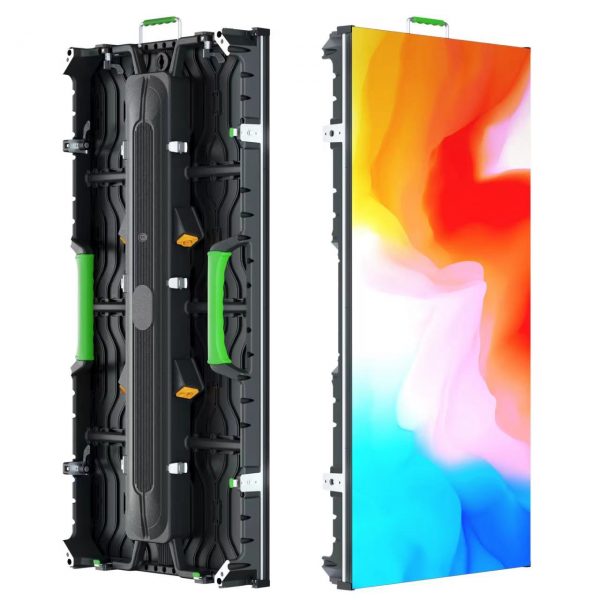

Slim cabinet 75mm Have 500x500mm & 500x1000mm 2 size 500x500mm & 500x1000mm cabinet can mixed assemble.
Both 500×500 and 500x1000mm cabinet can make curved shape or 90° shape
The module is soft pin connector

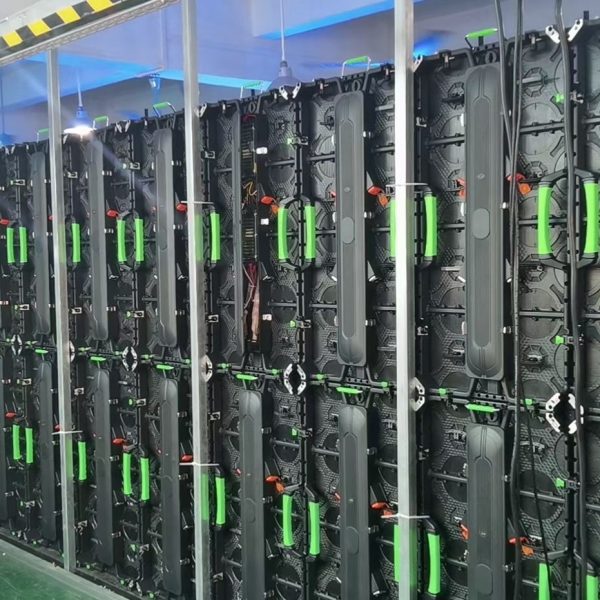

Strong Locks for hanging installation The cabinets locks are smooth edged, easy handling and strong that you can hang up to 20pcs cabinet in vertical.

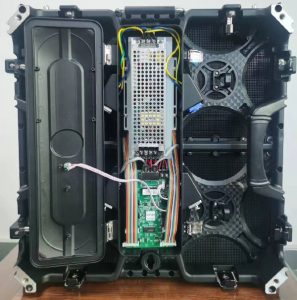

Front & Rear Maintenance It makes you remove the modules without any tools and maintain the screen in front side as well as rear side easily.
Hanging assemble or Stacking assemble No tools are required for installation of screen. Easy assemble
Corner protector Cabinet 4 corner have a protector.
Specifications
Indoor rental specification:
| Type Name | P1.56mm | P1.953mm | P2.604mm | P2.976mm | P3.91mm |
|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Pixel density（dot/m2） | 640x640 | 512x512 | 384x384 | 336x336 | 256x256 |
| Brightness (nits) | ≥600 | ≥700 | ≥800 | ≥1000 | ≥1000 |
| Drive Method | 1/48 | 1/32 | 1/32 | 1/28 | 1/16 |
| Refresh rate (HZ) | ≥7680 | ||||
| Cabinet size (mm) | 500x500x75 or 500x1000mm | ||||
| Cabinet material | Die-casting Aluminium | ||||
| Cabinet weight | 28kg/m² | ||||
| Work Voltage (V) | 110~240V/AC | ||||
| Screen power consumption (W/㎡) | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 |
| Screen View angle | 160°/160° | ||||
| IP Grade | IP43 | ||||
| Operationg Temperature/Humidity | -20~50℃ , 10~90% RH | ||||
| Storage Temperature/Humidity | -40~60℃ , 10~90% RH | ||||
| Life Time | ＞50000Hours | ||||
| Standard Certification | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, |
Outdoor rental specification:
| Type Name | OR2.6 | OR2.97 | OR3.91 | OR4.81 |
|---|---|---|---|---|
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Pixel density（dot/m2） | 147456 | 112896 | 65536 | 43264 |
| Brightness (nits) | ≥5000 | ≥5000 | ≥5000 | ≥5000 |
| Drive Method | 1/32 | 1/28 | 1/16 | 1/13 |
| Refresh rate (HZ) | ≥7680HZ | |||
| Cabinet size (mm) | 500x500x75 or 500x1000mm | |||
| Cabinet material | Die-casting Aluminium | |||
| Cabinet weight | 28kg/m² | |||
| Work Voltage (V) | 110~240V/AC | |||
| Screen power consumption (W/㎡) | Max 750 / Average250 | Max 720 / Average240 | Max 450 / Average 150 | Max 450 / Average 150 |
| Screen View angle | 140°/140° | |||
| IP Grade | IP65 | |||
| Operationg Temperature/Humidity | -20~50℃ , 10~90% RH | |||
| Storage Temperature/Humidity | -40~60℃ , 10~90% RH | |||
| Life Time | ＞50000H | |||
| Standard Certification | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, |
Need exact specifications for your project?
Tell us the required size, pixel pitch and application. Our engineers will recommend the most cost-effective configuration.
