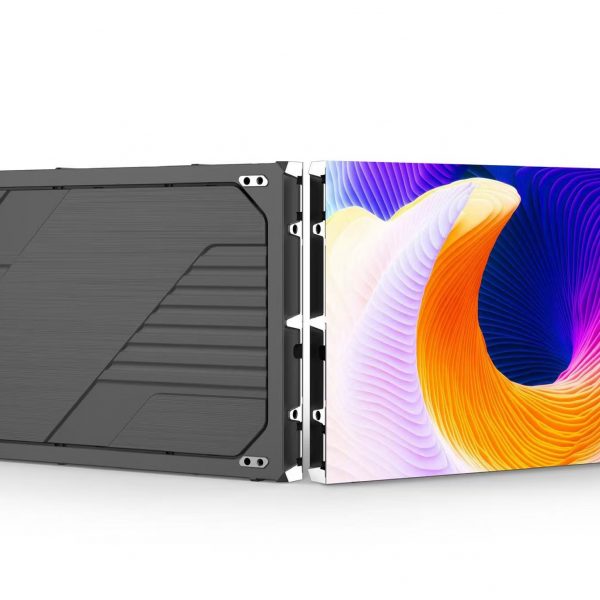

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 1

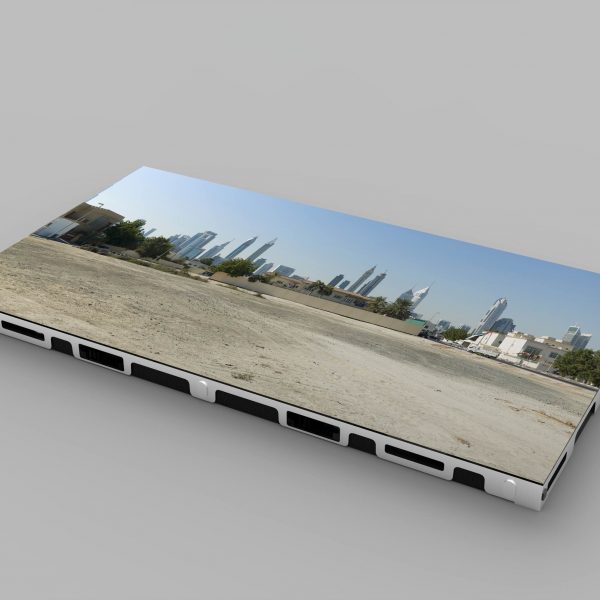

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 2

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 3

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 4

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 5

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 6

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 7

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm — image 8

Indoor Small Pitch

Mini LED COB Indoor Display — P0.6 / P0.7 / P0.9mm

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place. Type Name: COB Pixel pitch: 0.78mm 0.93mm 1.25mm 1.53mm Brightness: 600 nits Cabinet Size: 600×337.5×27.5mm Feature: Slim cabinet, 100% cable inside, 100% front service, 100% no noise. Perfect for fixed installation

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place.
Type Name: COB
Pixel pitch: 0.78mm 0.93mm 1.25mm 1.53mm
Brightness: 600 nits
Cabinet Size: 600×337.5×27.5mm
Feature: Slim cabinet, 100% cable inside, 100% front service, 100% no noise. Perfect for fixed installation

Request a quotation WhatsApp us

Key features

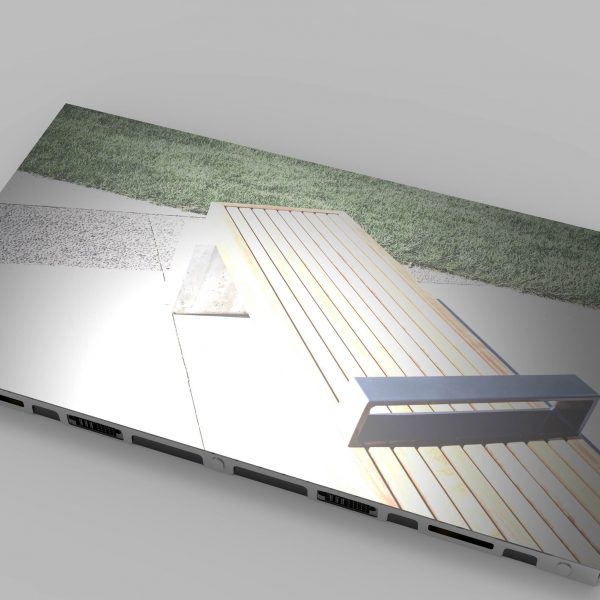

Scientific & Slim design cabinet size, 600×337.5mm Thickness just 27.5mm , save a lot of installation space.

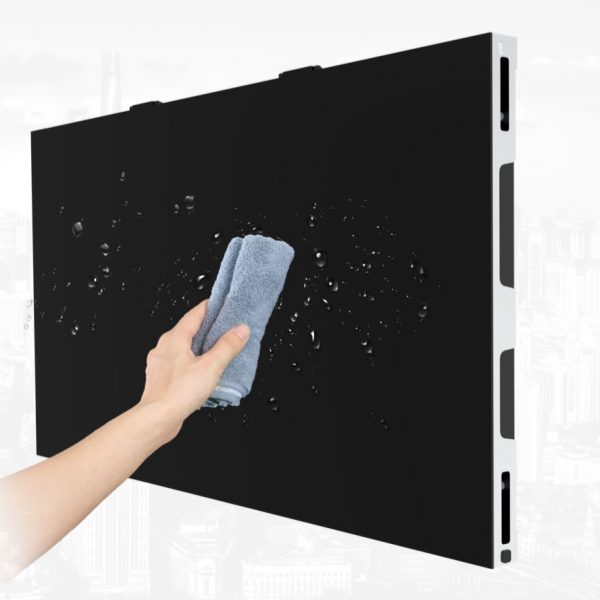

COB protection Due to the small spacing of conventional SMD small pitch displays, the display unit cannot be glued or installed with a mask, exposing the LED on the outside, making the display waterproof, dustproof, and collision resistant obstacles for dust free crossing. Even during transportation, the light beads will be knocked off.

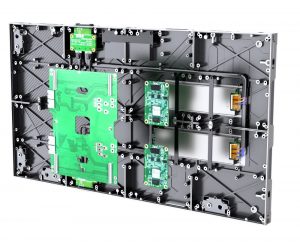

Accept 100% front or 100% rear maintenance Everything you can 100% take from front or back.

Dual card dual electric Configurable dual backup version to ensure uninterrupted power supply。 Signal not lost, more stable and reliable。

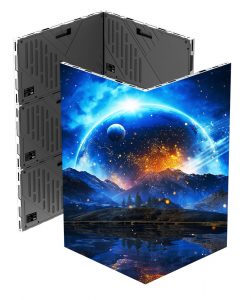

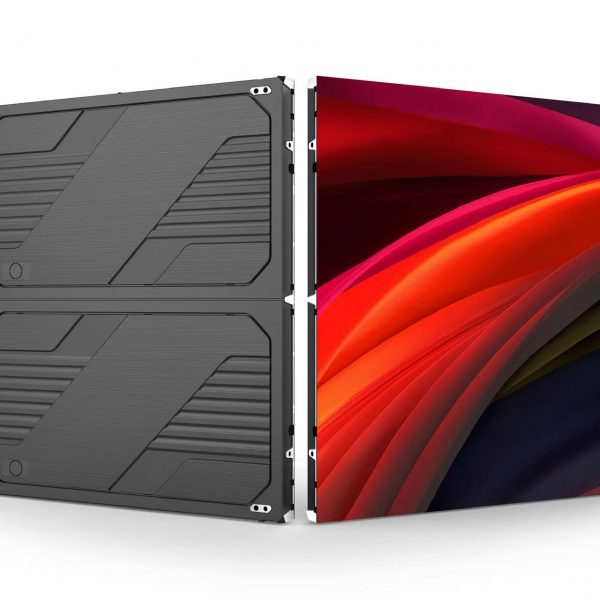

90° shape Accept straight and 90° assemble

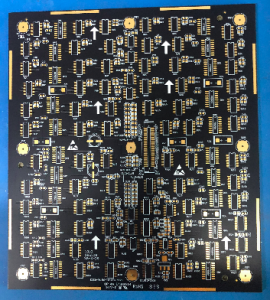

100% Pure copper PCB board Each module use 100% high quality pure copper PCB board, 6 layers.

Perfect & Clean assemble

Specifications

Type Name	COB P0.78	COB P0.93	COB P1.25	COB P1.53
Pixel Pitch	0.78mm	0.93mm	1.25mm	1.56mm
Pixel density（dot/m2）	1638400	1155625	640000	410881
Brightness (nits)	≥600	≥600	≥600	≥600
Drive Method	1/90	1/60	1/60	1/48
Refresh rate (HZ)	≥7680
Module pixel (mm)	150X168.75	150X168.75	150X168.75	150X168.75
Cabinet size (mm)	600x337.5x27.5
Cabinet material	Die-casting Aluminium
Cabinet weight	4.5kg/cabinet
Screen work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 700 / Average240	Max 700 / Average240	Max 700 / Average240	Max 700 / Average240
Screen View angle	160°/160°
IP Grade	IP31
Operationg Temperature/Humidity	-20~50℃ 10~90% RH
Storage Temperature/Humidity	-40~60℃ 10~90% RH
Life Time	＞50000H
Standard Certification	CE CCC	CE CCC	CE CCC	CE CCC
