Indoor Small Pitch
Poster LED Display
Application: All indoor place, shop, airport, Bank, Car Shop. Type Name: Poster Pixel pitch: P1.2, P1.9, P2, P3, P4, P5, P6 Brightness: 800 nits Feature: Easy to control, easy to install
- Application
- All indoor place, shop, airport, Bank, Car Shop.
- Type Name
- Poster
- Pixel pitch
- P1.2, P1.9, P2, P3, P4, P5, P6
- Brightness
- 800 nits
- Feature
- Easy to control, easy to install
Key features

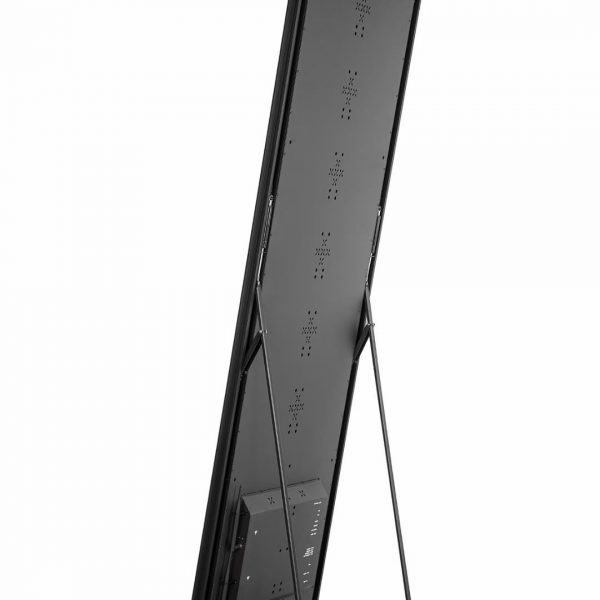

Customize Size Pixel pitch: Indoor: P1.25mm GOB, P1.53mm GOB, P1.86mm GOB, P2mm GOB, P2.5mm GOB Outdoor: P2.5mm Screen Size is 640x1920mm You can choose upright or support pole
Cabinet Material: Iron + aluminum profile frame : the advantage is that the size can be customized and the price is cheap Die-cast aluminum : the advantage is that it can be seamlessly spliced and folded.

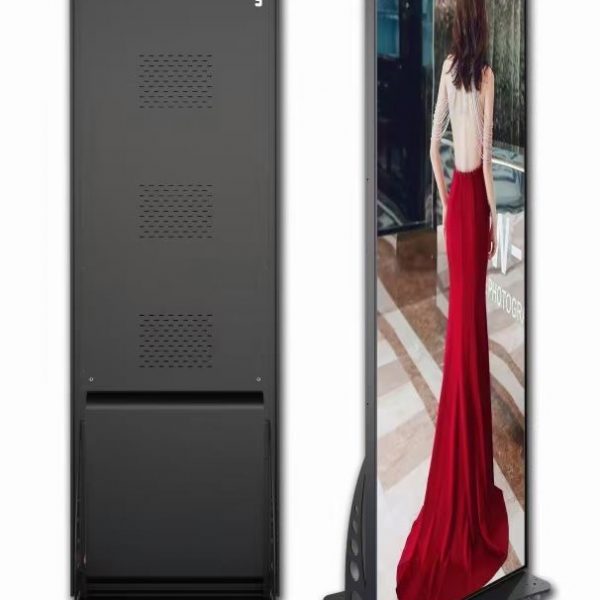

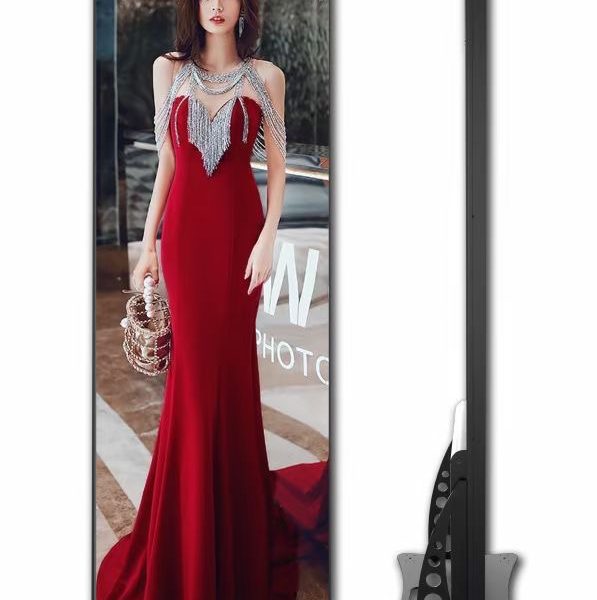

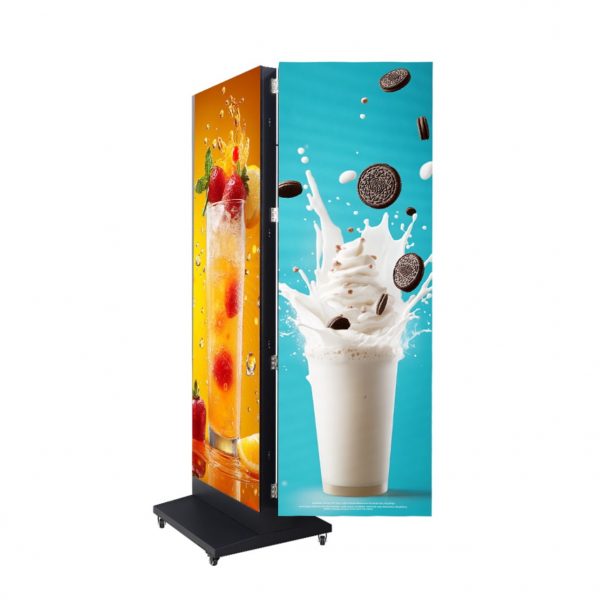

LED POSTER with single or double-sided display

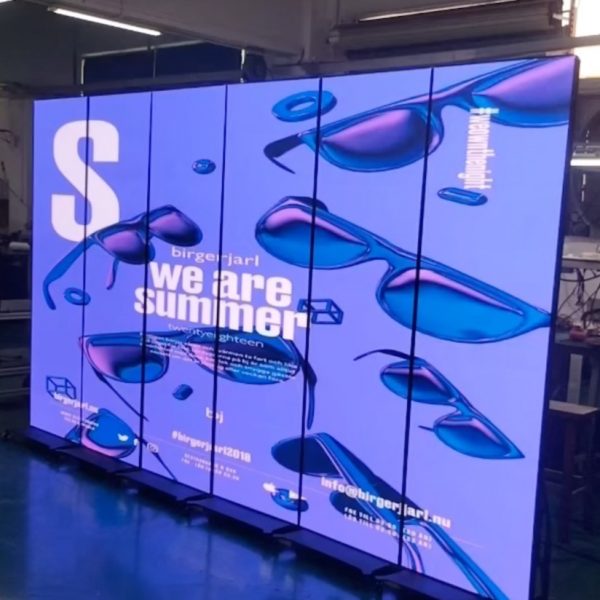

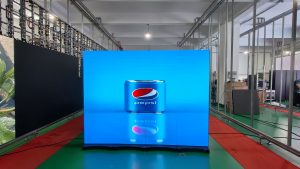

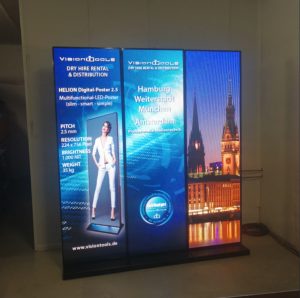

Multiple POSTERs can be combined into a large screen. The LED poster in the iron cabinet has a frame, which can prevent the LED from being bumped, but there will be gaps when forming a large screen. The die-cast aluminum cabinet has no frame and can be seamlessly spliced.

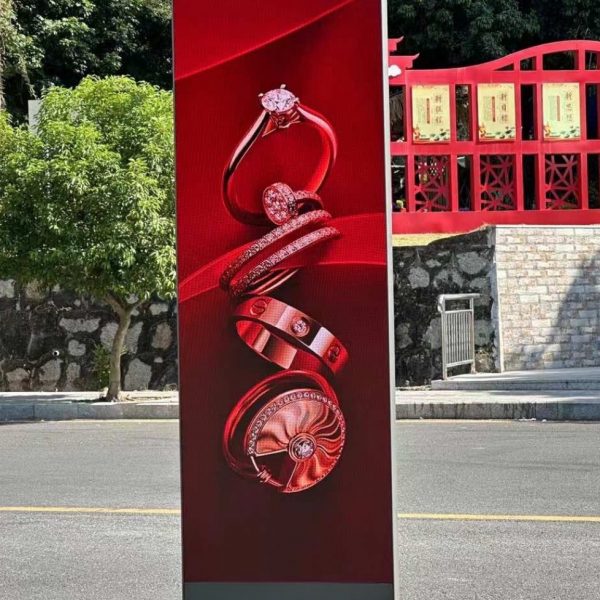

The Outdoor LED poster, High brightness, Waterproof.

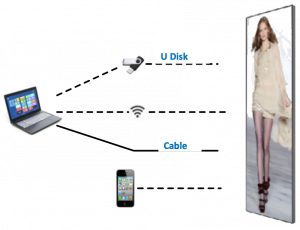

Support different control method
Installation on the wall

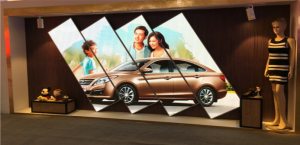

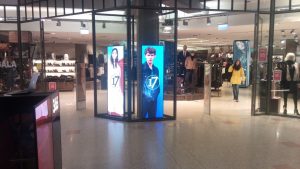

Install inside shop window
Install in front of the Air port

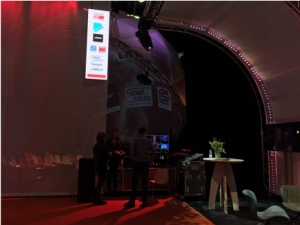

Event exhibition entrance
https://youtube.com/shorts/mgB3rVe8Qws?feature=share
https://youtube.com/shorts/c2-kon8s2pE?feature=share
Specifications
Indoor rental specification:
| Type Name | P1.25mm | P1.53mm | P1.86mm | P2mm | P2.5mm |
|---|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.53mm | 1.953mm | 2.604mm | 2.976mm |
| Pixel density（dot/m2） | 640000 | 427716 | 287296 | 250000 | 160000 |
| Brightness (nits) | ≥600 | ≥600 | ≥700 | ≥800 | ≥1000 |
| Drive Method | 1/48 | 1/48 | 1/32 | 1/32 | 1/28 |
| Refresh rate (HZ) | ≥7680 | ||||
| Cabinet size (mm) | 640x1920 or customized | ||||
| Cabinet material | Die-casting Aluminium or Steel+Aluminum alloy | ||||
| Cabinet weight | 28kg/m² | ||||
| Work Voltage (V) | 110~240V/AC | ||||
| Screen power consumption (W/㎡) | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 | Max 750 / Average250 |
| Screen View angle | 160°/160° | ||||
| IP Grade | IP43 | ||||
| Operationg Temperature/Humidity | -20~50℃ , 10~90% RH | ||||
| Storage Temperature/Humidity | -40~60℃ , 10~90% RH | ||||
| Life Time | ＞50000Hours | ||||
| Standard Certification | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, | CE, ROHS, UL, 3C, |
Outdoor rental specification:
| Type Name | OR2.5 |
|---|---|
| Pixel Pitch | 2.5mm |
| Pixel density（dot/m2） | 160000 |
| Brightness (nits) | ≥5000 |
| Drive Method | 1/32 |
| Refresh rate (HZ) | ≥7680HZ |
| Cabinet size (mm) | 640x1920mm or Customized |
| Cabinet material | Die-casting Aluminium or Steel |
| Cabinet weight | 28kg/m² |
| Work Voltage (V) | 110~240V/AC |
| Screen power consumption (W/㎡) | Max 750 / Average250 |
| Screen View angle | 140°/140° |
| IP Grade | IP65 |
| Operationg Temperature/Humidity | -20~50℃ , 10~90% RH |
| Storage Temperature/Humidity | -40~60℃ , 10~90% RH |
| Life Time | ＞50000H |
| Standard Certification | CE, ROHS, UL, 3C, |
Need exact specifications for your project?
Tell us the required size, pixel pitch and application. Our engineers will recommend the most cost-effective configuration.
