HD Indoor Small-Pitch LED Display — P1.6 / P1.8 / P2.5

Name: HD Indoor Small-Pitch LED Display — P1.6 / P1.8 / P2.5
Brand: Green Harvest Optoelectronics Co., Ltd.

Category: HD & Small Pitch Indoor LED Displays

Indoor Small Pitch

HD Indoor Small-Pitch LED Display — P1.6 / P1.8 / P2.5

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place. Type Name: HD Pixel pitch: 1.67mm 1.806mm 2.5mm Brightness: 800–1000 nits Cabinet Size: 480×480×57 mm Feature: Slim cabinet, 100% cable inside, 100% front service, 100% no noise. Perfect for fixed installation

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place.
Type Name: HD
Pixel pitch: 1.67mm 1.806mm 2.5mm
Brightness: 800–1000 nits
Cabinet Size: 480×480×57 mm
Feature: Slim cabinet, 100% cable inside, 100% front service, 100% no noise. Perfect for fixed installation

Request a quotation WhatsApp us

Key features

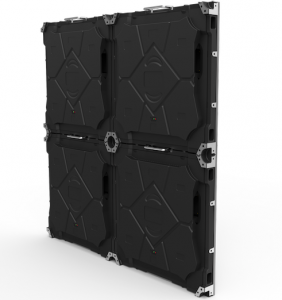

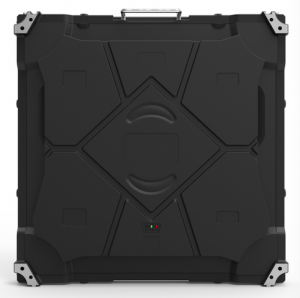

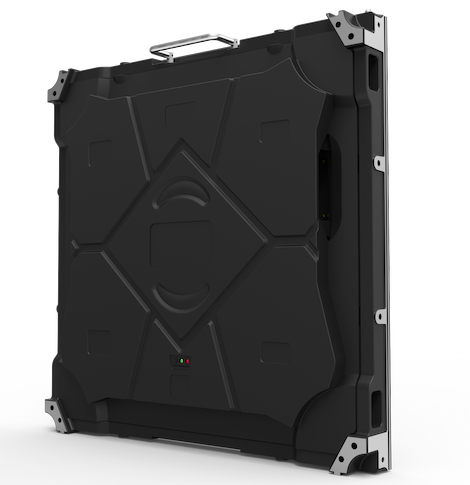

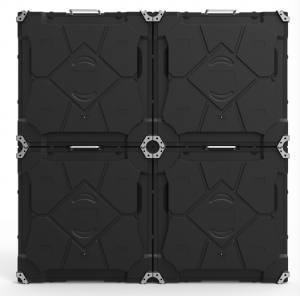

Scientific & Slim design cabinet size, 480x480mm Thickness just 57.4mm , help you save a lot of installation space.

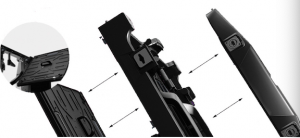

Each cabinet have 4 module Module is Magnetic assembled, you can take it from front or back side.

Accept 100% front or 100% rear maintenance Everything you can 100% take from front or back.

Accept install from front Each corner have 2 screw hole, one for backside install, another for front side install.

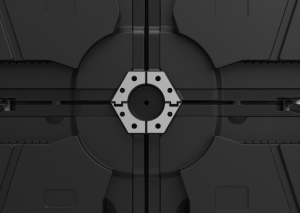

Cabinet connection cable inside All cable connection through the cabinet inside, there is no cable can see from outside

100% Pure copper PCB board Each module use 100% high quality pure copper PCB board, 6 layers.

Perfect & Clean assemble

Specifications

Type Name	HD 1.6	HD 1.8	HD 2.5
Pixel Pitch	1.66mm	1.87mm	2.5mm
Pixel density（dot/m2）	362650	410881	160000
Brightness (nits)	≥1000	≥1000	≥1000
Drive Method	1/27	1/27	1/24
Refresh rate (HZ)	≥2400
Module pixel (mm)	240x240	240x240	240x240
Cabinet size (mm)	480x480x57.4
Cabinet material	Die-casting Aluminium
Cabinet weight	5.24kg/cabinet
Screen work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 650 / Average200	Max 650 / Average200	Max 650 / Average200
Screen View angle	160°/140°
IP Grade	IP30
Operationg Temperature/Humidity	-20~50℃ 10~90% RH
Storage Temperature/Humidity	-40~60℃ 10~90% RH
Life Time	＞50000H
Standard Certification	CE CCC	CE CCC	CE CCC
