HD Plus Indoor Small-Pitch LED Display — P0.9 / P1.2 / P1.5 / P1.8

Name: HD Plus Indoor Small-Pitch LED Display — P0.9 / P1.2 / P1.5 / P1.8
Brand: Green Harvest Optoelectronics Co., Ltd.

Category: HD & Small Pitch Indoor LED Displays

Indoor Small Pitch

HD Plus Indoor Small-Pitch LED Display — P0.9 / P1.2 / P1.5 / P1.8

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place. Type Name: HD PLUS Pixel pitch: P0.95mm P1.25mm P1.53mm 1.87mm Brightness: 800–1000 nits Cabinet Size: 600×337.5×66 mm Feature: 100% 16:9 rate cabinet size, 100% cable free, 100% front service, 100% no noise. Perfect for fixed installation

Application: Meeting room, CCTV control room, TV station, train station, airport and some indoor place.
Type Name: HD PLUS
Pixel pitch: P0.95mm P1.25mm P1.53mm 1.87mm
Brightness: 800–1000 nits
Cabinet Size: 600×337.5×66 mm
Feature: 100% 16:9 rate cabinet size, 100% cable free, 100% front service, 100% no noise. Perfect for fixed installation

Request a quotation WhatsApp us

Key features

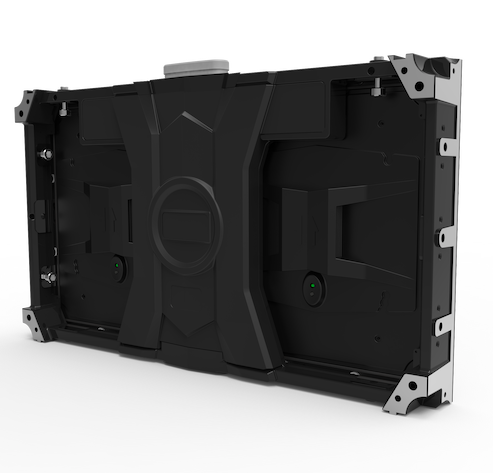

Scientific & Slim design Perfect 16:9 cabinet size, 600×337.5mm Thickness just 66mm , help you save a lot of installation space.

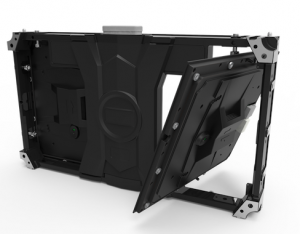

Each cabinet have 2 module Module is Magnetic assembled

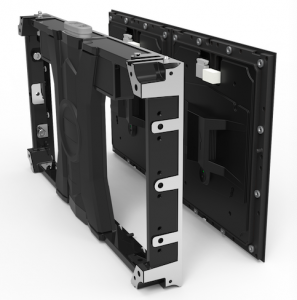

Accept 100% front or 100% rear maintenance Everything you can 100% take from front or back.

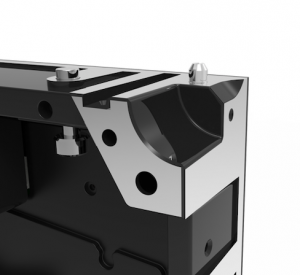

Accept install from front Each corner have 2 screw hole, one for backside install, another for front side install.

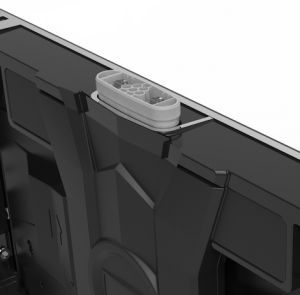

Cabinet connection cable free Each cabinet have a power and signal connector, no need cable.

100% Pure copper PCB board Each module use 100% high quality pure copper PCB board, 6 layers.

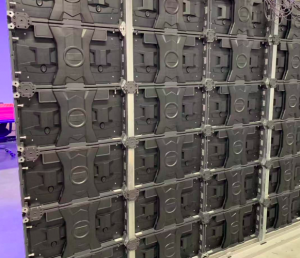

Perfect & Clean assemble

Specifications

Type Name	HD PLUS 0.9	HD PLUS 1.2	HD PLUS 1.5	HD PLUS 1.8
Pixel Pitch	0.93mm	1.25mm	1.56mm	1.87mm
Pixel density（dot/m2）	1155625	640000	410881	285561
Brightness (nits)	≥1000	≥1000	≥1000	≥1000
Drive Method	1/32	1/32	1/27	1/24
Refresh rate (HZ)	≥2400
Module pixel (mm)	300x337.5	300x337.5	300x337.5	300x337.5
Cabinet size (mm)	600x337.5
Cabinet material	Die-casting Aluminium
Cabinet weight	5.24kg/cabinet
Screen work Voltage (V)	110~240V/AC
Screen power consumption (W/㎡)	Max 700 / Average240	Max 700 / Average240	Max 700 / Average240	Max 700 / Average240
Screen View angle	160°/140°
IP Grade	IP30
Operationg Temperature/Humidity	-20~50℃ 10~90% RH
Storage Temperature/Humidity	-40~60℃ 10~90% RH
Life Time	＞50000H
Standard Certification	CE CCC	CE CCC	CE CCC	CE CCC
